argos::CPrototypeJointEntity Class Reference

#include <prototype_joint_entity.h>

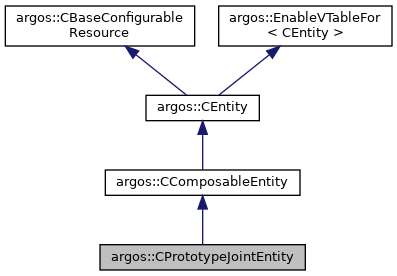

Inheritance diagram for argos::CPrototypeJointEntity:
Collaboration diagram for argos::CPrototypeJointEntity:

Classes

struct  SActuator

struct  SSensor

union  ULimit


Public Types

enum class  EType {
  FIXED , PRISMATIC , REVOLUTE , SPHERICAL ,
  PLANAR
}

using TVector = std::vector< CPrototypeJointEntity * >

using TVectorIterator = std::vector< CPrototypeJointEntity * >::iterator

using TVectorConstIterator = std::vector< CPrototypeJointEntity * >::const_iterator

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Public Member Functions

 ENABLE_VTABLE ()

 CPrototypeJointEntity (CComposableEntity *pc_parent)

virtual ~CPrototypeJointEntity ()

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

CPrototypeLinkEntityGetParentLink ()

const CPrototypeLinkEntityGetParentLink () const

const CVector3GetParentLinkJointPosition () const

const CQuaternionGetParentLinkJointOrientation () const

CPrototypeLinkEntityGetChildLink ()

const CPrototypeLinkEntityGetChildLink () const

const CVector3GetChildLinkJointPosition () const

const CQuaternionGetChildLinkJointOrientation () const

bool GetDisableCollision () const

EType GetType () const

const CVector3GetJointAxis () const

bool HasLimit ()

const ULimitGetLimit () const

SSensorGetSensor ()

SActuatorGetActuator ()

- Public Member Functions inherited from argos::CComposableEntity
 ENABLE_VTABLE ()

 CComposableEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CComposableEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CComposableEntity ()
 Class destructor. More...

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

virtual void Update ()
 Updates the status of this entity. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

virtual void UpdateComponents ()
 Calls the Update() method on all the components. More...

void AddComponent (CEntity &c_component)
 Adds a component to this composable entity. More...

CEntityRemoveComponent (const std::string &str_component)
 Removes a component from this composable entity. More...

CEntityGetComponent (const std::string &str_component)
 Returns the component with the passed string label. More...

template<class E >
E & GetComponent (const std::string &str_component)
 Returns the component with the passed string label. More...

bool HasComponent (const std::string &str_component)
 Returns true if this composable entity has a component with the given string label. More...

CEntity::TMultiMap::iterator FindComponent (const std::string &str_component)
 Searches for a component with the given string label. More...

CEntity::TMultiMapGetComponentMap ()
 Returns the map of all the components. More...

CEntity::TVectorGetComponentVector ()
 Returns the vector of all the components. More...

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Detailed Description

Definition at line 21 of file prototype_joint_entity.h.

Member Typedef Documentation

◆ TVector

◆ TVectorConstIterator

Definition at line 29 of file prototype_joint_entity.h.

◆ TVectorIterator

Definition at line 28 of file prototype_joint_entity.h.

Member Enumeration Documentation

◆ EType

Enumerator
FIXED
PRISMATIC
REVOLUTE
SPHERICAL
PLANAR

Definition at line 32 of file prototype_joint_entity.h.

Constructor & Destructor Documentation

◆ CPrototypeJointEntity()

argos::CPrototypeJointEntity::CPrototypeJointEntity ( CComposableEntity pc_parent)

Definition at line 15 of file prototype_joint_entity.cpp.

◆ ~CPrototypeJointEntity()

virtual argos::CPrototypeJointEntity::~CPrototypeJointEntity ( )
inlinevirtual

Definition at line 71 of file prototype_joint_entity.h.

Member Function Documentation

◆ ENABLE_VTABLE()

argos::CPrototypeJointEntity::ENABLE_VTABLE ( )

◆ GetActuator()

SActuator& argos::CPrototypeJointEntity::GetActuator ( )
inline

Definition at line 139 of file prototype_joint_entity.h.

◆ GetChildLink() [1/2]

CPrototypeLinkEntity& argos::CPrototypeJointEntity::GetChildLink ( )
inline

Definition at line 95 of file prototype_joint_entity.h.

◆ GetChildLink() [2/2]

const CPrototypeLinkEntity& argos::CPrototypeJointEntity::GetChildLink ( ) const
inline

Definition at line 99 of file prototype_joint_entity.h.

◆ GetChildLinkJointOrientation()

const CQuaternion& argos::CPrototypeJointEntity::GetChildLinkJointOrientation ( ) const
inline

Definition at line 107 of file prototype_joint_entity.h.

◆ GetChildLinkJointPosition()

const CVector3& argos::CPrototypeJointEntity::GetChildLinkJointPosition ( ) const
inline

Definition at line 103 of file prototype_joint_entity.h.

◆ GetDisableCollision()

bool argos::CPrototypeJointEntity::GetDisableCollision ( ) const
inline

Definition at line 111 of file prototype_joint_entity.h.

◆ GetJointAxis()

const CVector3& argos::CPrototypeJointEntity::GetJointAxis ( ) const
inline

Definition at line 119 of file prototype_joint_entity.h.

◆ GetLimit()

const ULimit& argos::CPrototypeJointEntity::GetLimit ( ) const
inline

Definition at line 127 of file prototype_joint_entity.h.

◆ GetParentLink() [1/2]

CPrototypeLinkEntity& argos::CPrototypeJointEntity::GetParentLink ( )
inline

Definition at line 79 of file prototype_joint_entity.h.

◆ GetParentLink() [2/2]

const CPrototypeLinkEntity& argos::CPrototypeJointEntity::GetParentLink ( ) const
inline

Definition at line 83 of file prototype_joint_entity.h.

◆ GetParentLinkJointOrientation()

const CQuaternion& argos::CPrototypeJointEntity::GetParentLinkJointOrientation ( ) const
inline

Definition at line 91 of file prototype_joint_entity.h.

◆ GetParentLinkJointPosition()

const CVector3& argos::CPrototypeJointEntity::GetParentLinkJointPosition ( ) const
inline

Definition at line 87 of file prototype_joint_entity.h.

◆ GetSensor()

SSensor& argos::CPrototypeJointEntity::GetSensor ( )
inline

Definition at line 135 of file prototype_joint_entity.h.

◆ GetType()

EType argos::CPrototypeJointEntity::GetType ( ) const
inline

Definition at line 115 of file prototype_joint_entity.h.

◆ GetTypeDescription()

virtual std::string argos::CPrototypeJointEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CComposableEntity.

Definition at line 75 of file prototype_joint_entity.h.

◆ HasLimit()

bool argos::CPrototypeJointEntity::HasLimit ( )
inline

Definition at line 123 of file prototype_joint_entity.h.

◆ Init()

void argos::CPrototypeJointEntity::Init ( TConfigurationNode t_tree)
virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions
CARGoSExceptionif a parse error occurred

Reimplemented from argos::CEntity.

Definition at line 31 of file prototype_joint_entity.cpp.
