argos::CWheeledEntity Class Reference

#include <wheeled_entity.h>

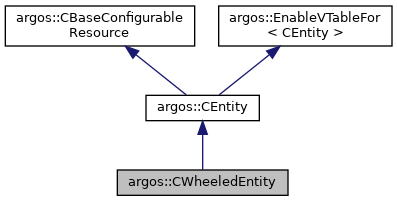

Inheritance diagram for argos::CWheeledEntity:

Collaboration diagram for argos::CWheeledEntity:

Public Member Functions
	ENABLE_VTABLE ()
	CWheeledEntity (CComposableEntity *pc_parent, size_t un_num_wheels)
	CWheeledEntity (CComposableEntity *pc_parent, const std::string &str_id, size_t un_num_wheels)
virtual	~CWheeledEntity ()
virtual void	Reset ()
	Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...
size_t	GetNumWheels () const
void	SetWheel (UInt32 un_index, const CVector3 &c_position, Real f_radius)
const CVector3 &	GetWheelPosition (size_t un_index) const
const CVector3 *	GetWheelPositions () const
Real	GetWheelRadius (size_t un_index) const
const Real *	GetWheelRadia () const
Real	GetWheelVelocity (size_t un_index) const
const Real *	GetWheelVelocities () const
void	SetVelocities (Real *pf_velocities)
virtual std::string	GetTypeDescription () const
	Returns a string label for this class. More...
Public Member Functions inherited from argos::CEntity
	ENABLE_VTABLE ()
	CEntity (CComposableEntity *pc_parent)
	Class constructor. More...
	CEntity (CComposableEntity *pc_parent, const std::string &str_id)
	Class constructor. More...
virtual	~CEntity ()
	Class destructor. More...
virtual void	Init (TConfigurationNode &t_tree)
	Initializes the state of the entity from the XML configuration tree. More...
virtual void	Destroy ()
	Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...
const std::string &	GetId () const
	Returns the id of this entity. More...
std::string	GetContext () const
	Returns the context of this entity. More...
bool	HasParent () const
	Returns true if this entity has a parent. More...
CEntity &	GetRootEntity ()
	Returns the root entity containing this entity. More...
const CEntity &	GetRootEntity () const
	Returns the root entity containing this entity. More...
CComposableEntity &	GetParent ()
	Returns this entity's parent. More...
const CComposableEntity &	GetParent () const
	Returns this entity's parent. More...
void	SetParent (CComposableEntity &c_parent)
	Sets this entity's parent. More...
virtual void	Update ()
	Updates the state of this entity. More...
ssize_t	GetIndex () const
	Returns the entity index. More...
void	SetIndex (ssize_t n_idx)
	Sets the entity index. More...
bool	IsEnabled () const
	Returns true if the entity is enabled. More...
void	Enable ()
	Enables the entity. More...
void	Disable ()
	Disables the entity. More...
virtual void	SetEnabled (bool b_enabled)
	Enables or disables an entity. More...
TConfigurationNode *	GetConfigurationNode ()
	Returns a pointer to the configuration node that was used to create this entity. More...
Public Member Functions inherited from argos::CBaseConfigurableResource
virtual	~CBaseConfigurableResource ()
	Class destructor. More...
Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t	GetTagHelper (const DERIVED *) const

Additional Inherited Members
Public Types inherited from argos::CEntity
typedef std::vector< CEntity * >	TVector
	A vector of entities. More...
typedef unordered_map< std::string, CEntity * >	TMap
	A map of entities. More...
typedef std::multimap< std::string, CEntity * >	TMultiMap
	A multi-map of entities. More...

Detailed Description

Definition at line 15 of file wheeled_entity.h.

Constructor & Destructor Documentation

CWheeledEntity() [1/2]

argos::CWheeledEntity::CWheeledEntity	(	CComposableEntity *	pc_parent,
		size_t	un_num_wheels
	)

Definition at line 15 of file wheeled_entity.cpp.

CWheeledEntity() [2/2]

argos::CWheeledEntity::CWheeledEntity	(	CComposableEntity *	pc_parent,
		const std::string &	str_id,
		size_t	un_num_wheels
	)

Definition at line 30 of file wheeled_entity.cpp.

~CWheeledEntity()

argos::CWheeledEntity::~CWheeledEntity ( )

virtual

Definition at line 46 of file wheeled_entity.cpp.

Member Function Documentation

ENABLE_VTABLE()

argos::CWheeledEntity::ENABLE_VTABLE

(

)

GetNumWheels()

size_t argos::CWheeledEntity::GetNumWheels ( ) const

inline

Definition at line 34 of file wheeled_entity.h.

GetTypeDescription()

virtual std::string argos::CWheeledEntity::GetTypeDescription ( ) const

inlinevirtual

Returns a string label for this class.

Returns

A string label for this class.

Reimplemented from argos::CEntity.

Definition at line 62 of file wheeled_entity.h.

GetWheelPosition()

const CVector3 & argos::CWheeledEntity::GetWheelPosition

(

size_t

un_index

)

const

Definition at line 77 of file wheeled_entity.cpp.

GetWheelPositions()

const CVector3* argos::CWheeledEntity::GetWheelPositions ( ) const

inline

Definition at line 44 of file wheeled_entity.h.

GetWheelRadia()

const Real* argos::CWheeledEntity::GetWheelRadia ( ) const

inline

Definition at line 50 of file wheeled_entity.h.

GetWheelRadius()

Real argos::CWheeledEntity::GetWheelRadius

(

size_t

un_index

)

const

Definition at line 89 of file wheeled_entity.cpp.

GetWheelVelocities()

const Real* argos::CWheeledEntity::GetWheelVelocities ( ) const

inline

Definition at line 56 of file wheeled_entity.h.

GetWheelVelocity()

Real argos::CWheeledEntity::GetWheelVelocity

(

size_t

un_index

)

const

Definition at line 101 of file wheeled_entity.cpp.

Reset()

void argos::CWheeledEntity::Reset ( )

virtual

Resets the state of the entity to whatever it was after Init() or the standalone constructor was called.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 55 of file wheeled_entity.cpp.

SetVelocities()

void argos::CWheeledEntity::SetVelocities

(

Real *

pf_velocities

)

Definition at line 113 of file wheeled_entity.cpp.

SetWheel()

void argos::CWheeledEntity::SetWheel	(	UInt32	un_index,
		const CVector3 &	c_position,
		Real	f_radius
	)

Definition at line 62 of file wheeled_entity.cpp.
